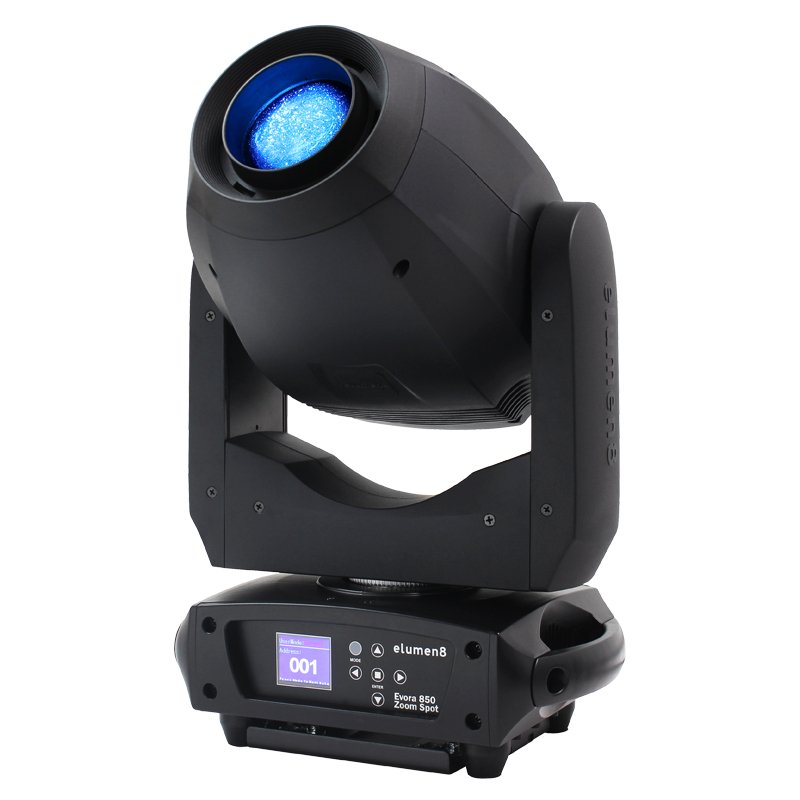

Evora 850 Zoom Spot

Category: LED

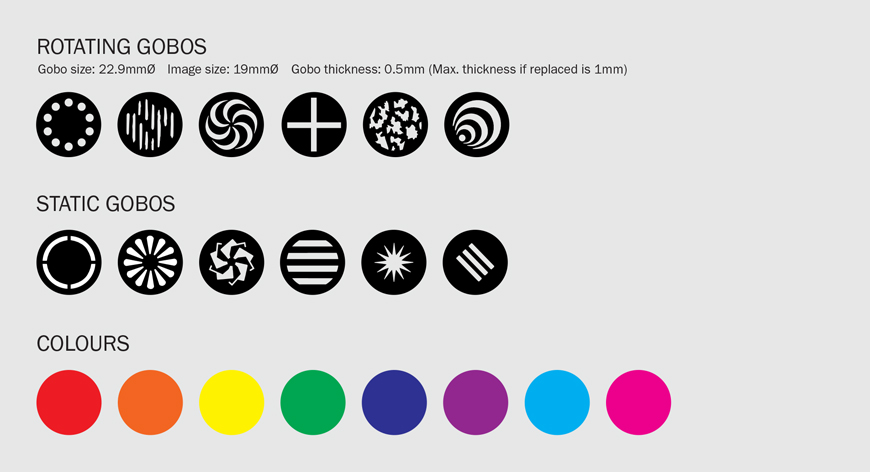

- 1 x 200W white LED (19,600K) - Adjustable beam angle: 11°- 22° - 11° - 36,853 Lux @ 2m, 22° - 18,819 Lux @ 2m - 3.5kHz refresh rate - Motorised zoom and focus - 6 facet circular rotating indexable prism plus 5 facet linear rotating indexable prism - Gobo wheel 1: 6 rotating, indexable, replaceable gobos + open - Gobo wheel 2: 6 static gobos + open - Colour wheel: 8 colours + open - DMX channels: 17/23 or 24 selectable - RDM (Remote Device Management) - Auto, sound active, manual control and master/slave modes - Forward facing show mode - Pan/tilt auto correction - 16-Bit pan/tilt positioning - Pan: 540°, Tilt: 270° - 0-100% dimming and variable strobe - Quick release omega clamps included - 6 push button menu with 1.8” LCD display - Display battery backup for offline configuration - PowerCON input/output - 3-Pin XLR input/output - 5-Pin XLR input/output - Temperature controlled fan
Barcode ID E0721
Power (W) 233
Size (mm) 470 x 295 x 180
Weight (Kg) 10.6
Lamp 1 x 200W

Location

Meatrack, Stage - Assembly Hall
