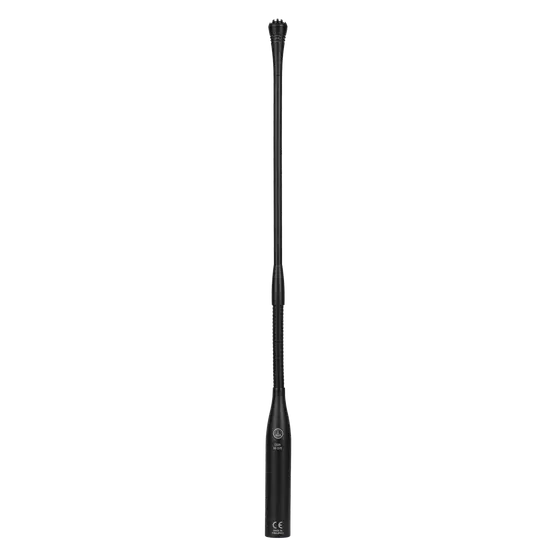

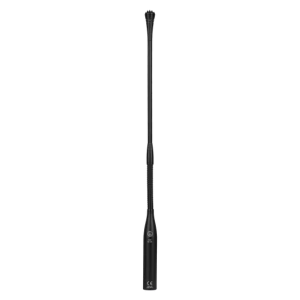

CGN99 H/S
Category: Wired Microphones
General Specifications
Audio frequency bandwidth50 - 19000 Hz
Equivalent noise level21 dB-A
Sensitivity12 mV/Pa
Signal to Noise73 dB-A
Electrical impedance600 Ohms
Recommended load impedance2000 Ohms
Polar PatternHypercardioid
Dimensions
Height380 mm
Diameter13.5 mm
Net Weight160 g
Design
Finishblack
Audio Output
TypeBalanced XLR
GenderMale
Contacts3-pin
| Barcode ID | E0736 |
| Serial # | 2965X00120 |
Location
Black Cupboard, Tech Office | Assembly Hall
Product Downloads
-
AKG_9100U13160_C_QSG_CGN_99_and_CHM_99
pdf | 7.97 MB | 33 hits -
AKG_CGN99H_Polar_Patterns
pdf | 127.72 KB | 23 hits -
AKG_CGN99_CHM99_Manual
pdf | 3.51 MB | 31 hits
